Our 28' x 36' Ashford Barn is the classic barn that can fit in anywhere.   This plan includes everything to get you started building your dream cabin. We provide all the door and window schedules, architectural elevations, frame elevations, timber/fastener/connector list, all wall layouts, beam layouts, rafter layout, fastening details, and all single beam drawings. It uses 8x8 posts, 8x12 plate beams, 6x8 and 4x10 tie beams, 4x6 knee braces, and 4x10 rafters, 4x4 wall plates, and 4x8 sill plate covers.  Let us help you get started today on that dream cabin of yours!



Building Specifications:

  • Size: 28' x 36'
  • Total Square Footage: 1,008



Frame Specifications:

*Timbers are 1/2" Under Full Dimension*

  • Joinery: Mortise and Tenon
  • Posts: 8x8
  • Plate Beam: 8x12
  • Tie Beams: 6x8 and 4x10
  • Ridge Plates: 3x14
  • Rafters: 4x10
  • Knee Braces: 4x6
  • Wall Plates: 4x4
  • Sill Plate Covers: 4x8
  • Roof: Main Roof:10 Pitch ; Shed Roof: 4 Pitch
  • Wall Height: Front Wall : 11'; Back Wall: 7'-4"



This Plan Includes the Following:



Architectural Items:

*All Architectural Item Pages to be Printed on 24" x 36" Paper Size*

  • Architectural Elevations
  • Door and Window Schedules
  • First Floor Plan
  • Timber Frame Overview



Timber Frame Items:

*All Timber Frame Item Pages to be Printed on 11" x 17" Paper Size*

  • Frame Elevations
  • Material List
  • Wall/Post Layout
  • Wall Layouts
  • Rafter/Plate Layout
  • Fastening Details
  • Single Beam Drawings

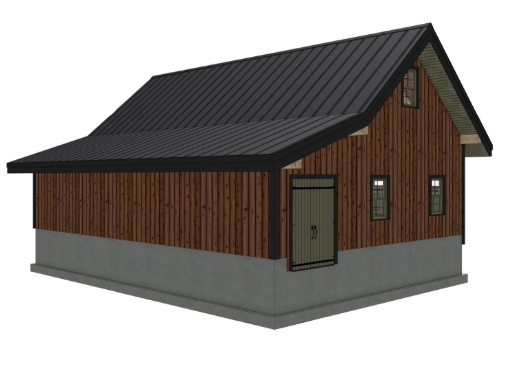

28' x 36' Broken Back Saltbox Ashford Barn

SKU: MT10-4BBSB2836-AB
$300.00 Regular Price
$210.00Sale Price
  • The buyer agrees that when purchasing a plan, they may only build one structure or building per plan bought.  They cannot reproduce the plan or any part of it without written consent of Team Timber.
