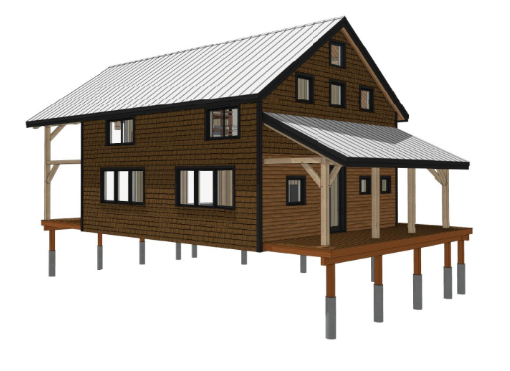

Our 28' x 32' Pine Creek Cabin is the classic cabin that can fit in anywhere.   This timber frame plan includes everything to get you started building your dream cabin.  We provide all the door and window schedules, sample architectural elevations, sample floor plans, frame elevations, timber/fastener/connector list, all wall layouts, beam layouts, rafter layout, fastening details, and all single beam drawings. It uses 8x8 posts, 8x10 plate beams, 8x8 and 8x10 tie beams, 6x8 and 8x8 joists, 4x6 and 4x8 knee braces, 6x12 ridge plates and a mixture of 6x8 and 8x8 rafters. Let us help you get started today on that dream cabin of yours!



Building Specifications:

  • Size: 28' x 32'
  • Total Square Footage: 1,629



Frame Specifications:

*Timbers are 1/2" Under Full Dimension*

  • Joinery: Mortise and Tenon
  • Posts: 8x8
  • Plate Beam: 8x10
  • Tie Beams: 6x10
  • Joists: 6x8 and 8x8
  • Ridge Plates: 6x12
  • Rafters: 6x8 and 8x8
  • Knee Braces: 4x6
  • Roof: Main Roof: 8 Pitch; Front Porch: 6 Pitch
  • Wall Height: 1st Floor: 9'-3 5/8”; 2nd Floor: 6'-7"



This Plan Includes the Following:



Architectural Items:

*All Architectural Item Pages to be Printed on 24" x 36" Paper Size*

  • Sample Architectural Elevations
  • Door and Window Schedules
  • Sample Floor Plans
  • Timber Frame Overview



Timber Frame Items:

*All Timber Frame Item Pages to be Printed on 11" x 17" Paper Size*

  • Frame Elevations
  • Material List
  • Wall/Post Layout
  • Wall Layouts
  • Joist Layout
  • Rafter/Plate Layout
  • Fastening Details
  • Single Beam Drawings



28' x 32' Pine Creek Cabin

SKU: MT8G2832-PCC
$350.00 Regular Price
$245.00Sale Price
  • The buyer agrees that when purchasing a plan, they may only build one structure or building per plan bought.  They cannot reproduce the plan or any part of it without written consent of Team Timber.
