This 28' x 24'  Pavilion not only looks great, but offers so much great space for unlimited uses.  Our 43-page plan gives you everything you will need including  a sample foundation plan, sample architectural elevations, 3D renderings, frame elevations, material lists, post layout, wall layouts, rafter layout and all single beam drawings.  The frame is made up with 10x10 posts, 10x12 plate beams, 10x12 girders, 6x10, 8x10 and 10x10 rafters, 10x10 band joists and 6x8 knee braces. Let us help you get started today!


Frame Specifications:

*Timbers are 1/2" Under Full Dimension*

  • Size: 28' x 24'
  • Joinery: Mortise and Tenon
  • Posts: 10x10
  • Plate Beams: 10x12
  • Girders: 10x12
  • Rafters: 6x10, 8x10 and 10x10
  • Band Joists: 10x10
  • Knee Braces: 6x8
  • Roof: 12 Pitch
  • Wall Height:  10'
  • Rafter Overhang:  2'


Plan Specifications:

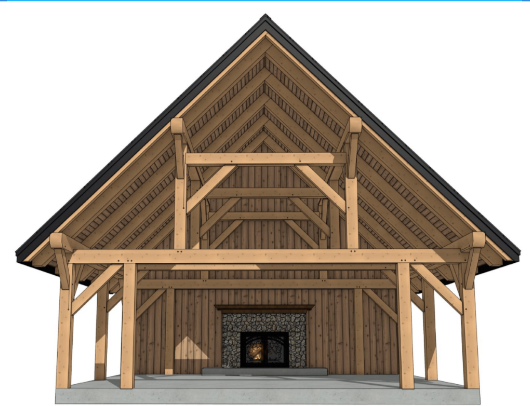

  • Renderings
  • Sample Foundation Plan
  • Sample Architectural Elevations
  • Cross Section Detail
  • Frame Elevations
  • Material List
  • Post Layout
  • All Wall Layouts
  • Rafter Layout

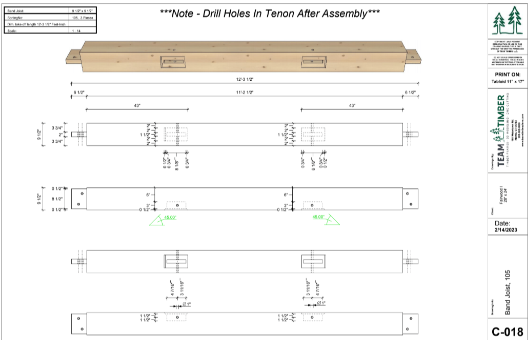

  • Single Beam Drawings

28' x 24' Fairwood Pavilion I

SKU: 2824FPI
  • The CNC Pre-Cut Frame for this Pavilion starts at $37,495.  Contact us for more information.
