This workshop is 24' x 28' with 19' 6" shed dormers on each side of its gable roof for added height on the second floor.  It uses T-Rex connectors making it easy to cut and assemble with no complicated joinery.  This 35 page plan consists of everything you will need including elevations, foundation/post layout, timber and connector/fastener list, all wall layouts, joist layout, rafter layout, fastening details, and single beam drawings.  The frame is made up of 8x8 posts and band joists, 8x12 girders and structural ridge beam, 6x8 joists, 4x8 rafters, 6x8 knee braces, and 4x4 siding nailers.  The possibilites with this frame are endless, so get started today with these plans!



Frame Specifications:

  • Size: 24' x 28'
  • Joinery:  T-Rex Connectors
  • Posts: 8x8
  • Plate Beam: 8x12
  • Girders: 8x12
  • Structural Ridge Beam: 8x12
  • Rafters: 4x8
  • Joists: 6x8
  • Knee Braces: 4x6 and 6x8
  • Siding Nailers: 4x4
  • Band Joists: 8x8
  • Roof: Main: 10 Pitch ; Dormer: 4 Pitch
  • Wall Height: 9'
  • Rafter Overhang: 3'-3/4"



Plan Specifications:

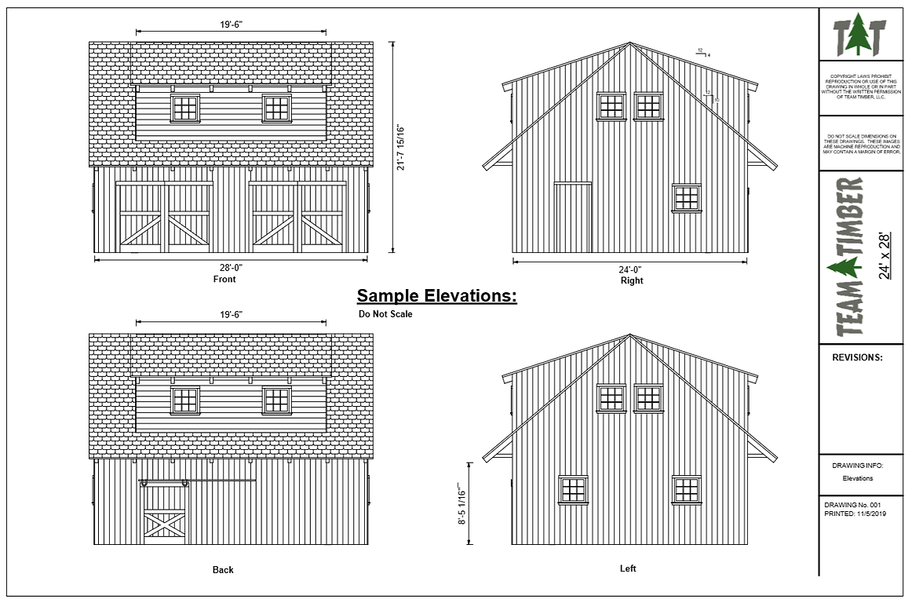

  • Frame Elevations
  • Material List
  • Foundation/Post Layout
  • All Wall Layouts
  • Joist Layout
  • Rafter Layout
  • Single Beam Drawings

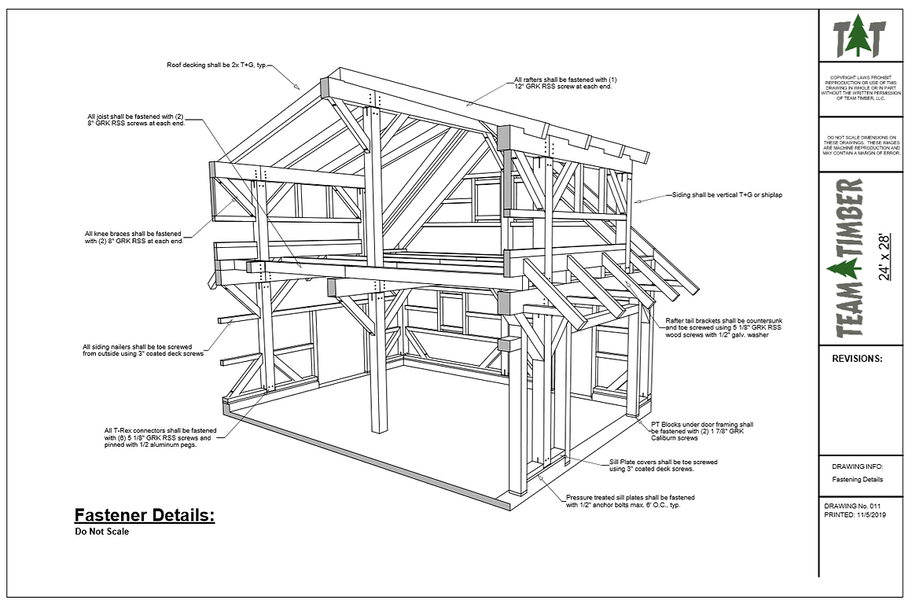

  • Fastening Details

24' x 28' T-REX Workshop

SKU: TR10G4D2428
$200.00 Regular Price
$100.00Sale Price
  • The buyer agrees that when purchasing a plan, they may only build one structure or building per plan bought.  They cannot reproduce the plan or any part of it without written consent of Team Timber.
