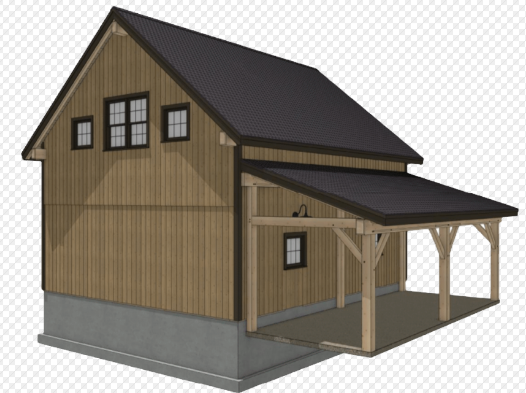

This 24' x 28' Barn would be great just about anywhere.  This full plan includes everything to get you started building your dream Barn.  We provide a foundation layout, floor plans, architectural elevations with door and window schedules, a cross section detail, staircase specifications, an electrical plan, a roof plan, timber/fastener/connector list, all wall layouts, beam layouts, rafter layout, fastening details, and all single beam drawings.  It uses 8x8 posts, 8x12 plate beams, 8x8 and 8x12 band joists, 6x10 joists, 4x6 knee braces, 8x12 ridge plates, and 4x8, 6x10 and 8x10 rafters. Let us help you get started today with this set of plans!



Building Specifications:

  • Size: 24' x 28'
  • Total Square Footage: 1,292



Frame Specifications:

*Timbers are 1/2" Under Full Dimension*

  • Joinery: Mortise and Tenon
  • Posts: 8x8
  • Plate Beams: 8x12
  • Band Joists: 8x8 and 8x12
  • Joists: 6x10
  • Ridge Plates: 8x12
  • Knee Braces: 4x6
  • Rafters: 4x8, 6x10 and 8x10
  • Roof: Main 10 Pitch; Lean-To: 4 Pitch
  • Wall Height: First Floor: 8'-9" ; Knee Wall: 4'-6"



This Plan Includes the Following:

*Note - These are considered Timber Frame Only Plans, contact us for adding additional items.*

Architectural Items:

*All Architectural Item Pages to be Printed on 24" x 36" Paper Size*

  • Foundation Layout
  • Architectural Elevations
  • Door and Window Schedules
  • Floor Plans
  • Cross Section Detail
  • Staircase Specifications
  • Electrical Plan
  • Roof Plan
  • Timber Frame Overview



Timber Frame Items:

*All Timber Frame Item Pages to be Printed on 11" x 17" Paper Size*

  • 3D Renderings
  • Material List
  • Wall/Post Layout
  • Wall Layouts
  • Joist Layout
  • Rafter/Plate Layout
  • Fastening Details
  • Single Beam Drawings

24' x 28' Hebron Barn IX

SKU: 2428HBIX
$500.00Price
  • The CNC Pre-Cut Frame for this Barn starts at $47,495. Contact us for more information.
