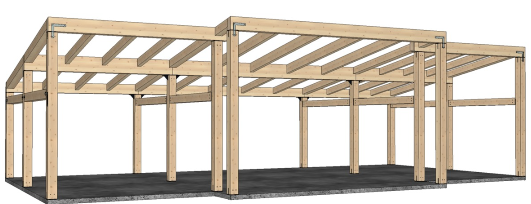

This 22' x 46' one bedrom cabin with shed roof uses a modern design with its plethora of doors and windows to really help “bring nature in”.  It is based off our original "Lake Cabin", but instead of a bedroom on each end, we eliminated one to create a covered area on the exterior deck.  This full plan includes everything to get you started building your dream cabin.  We provide all the door and window schedules,  sample architectural elevations, sample 1st floor plan,  frame elevations, timber/fastener/connector list, all wall layouts, beam layouts, rafter layout, fastening details, and all single beam drawings.  It uses 8x8 posts and tie beams, 8x14 plate beams, and a mixture of 8x8 and 4x8 rafters. Let us help you get started today with this set of plans!



Building Specifications:

  • Size: 22' x 46'
  • Total Square Footage: 940



Frame Specifications:

*Timbers are 1/2" Under Full Dimension*

  • Joinery: Mortise and Tenon
  • Posts: 8x8
  • Plate Beam: 8x14
  • Tie Beams: 8x8
  • Rafters: 4x8 and 8x8
  • Roof: 2 Pitch
  • Wall Height: Front: 13'-4 21/32" ; Back: 9'-2 21/32"



This Plan Includes the Following:



Architectural Items:

*All Architectural Item Pages to be Printed on 24" x 36" Paper Size*

  • Sample Architectural Elevations
  • Door and Window Schedules
  • Sample Floor Plan
  • Timber Frame Overview



Timber Frame Items:

*All Timber Frame Item Pages to be Printed on 11" x 17" Paper Size*

  • Frame Elevations
  • Material List
  • Wall/Post Layout
  • Wall Layouts
  • Joist Layout
  • Rafter/Plate Layout
  • Fastening Details
  • Single Beam Drawings

22' x 46' 1 Bedroom Lake Cabin

SKU: MT2S2246-1BLC
$350.00 Regular Price
$245.00Sale Price
  • The buyer agrees that when purchasing a plan, they may only build one structure or building per plan bought.  They cannot reproduce the plan or any part of it without written consent of Team Timber.
