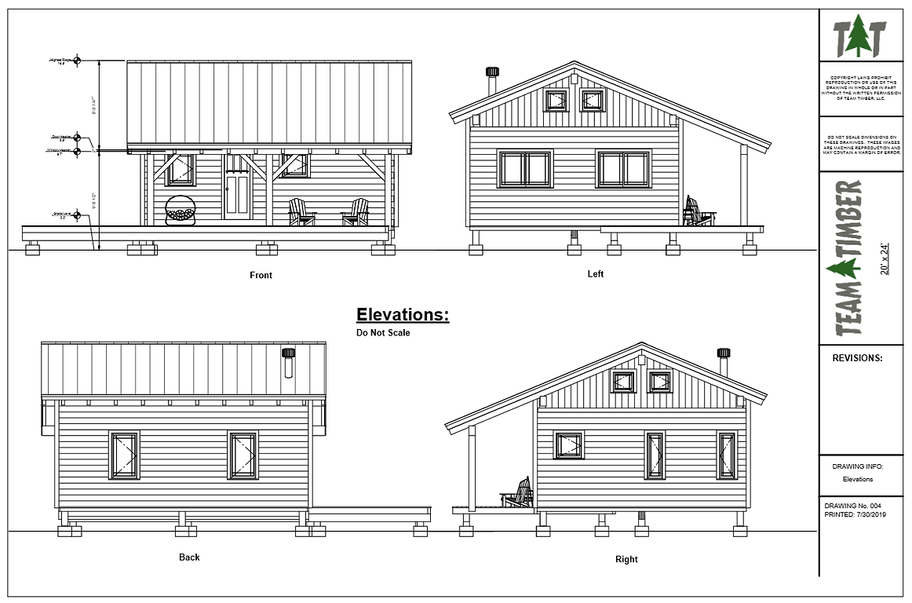

This one bedroom, one bathroom T-Rex  cabin would make a great vacation getaway, hunting camp or lakeside cottage. The 34-page plan includes renderings, architectural elevations, window/door schedules, foundation plan, first floor framing plan, first floor plan, section details, material/timber/fastener list, post layout, beam layout, wall layouts, ridge beam layout, rafter layout, fastening details and most importantly single beam drawings!! The T-Rex frame itself is made up of 8x8 post, 8x12 plate beams and ridge beam,8x10 tie beams,  6x8 joists, 4x6 knee braces, and 4x8 rafters. Plans will make this cabin easy to build!!


Frame Specifications:

  • Size: 20' x 24'
  • Joinery: T-Rex Connectors
  • Posts: 8x8
  • Plate Beams: 8x12
  • Tie Beams: 8x10
  • Joists: 6x8
  • Rafters: 4x8
  • Ridge Beam: 8x12
  • Knee Braces: 4x6
  • Roof: 5 Pitch
  • Wall Height: 8'


Plan Specifications:

  • Architectural Elevations
  • Material List
  • Foundation Layout
  • 1st Floor Framing
  • Floor Plans
  • Section Details
  • Frame Elevations
  • Post Layout
  • Beam Layout
  • All Wall Layouts
  • Ridge Beam Layout
  • Rafter Layout
  • Single Beam Drawings
  • Fastening Details

20' x 24' T- REX Maine Cabin

SKU: TR5G2024-MC
  • The CNC Pre-Cut Frame for this Cabin starts at $21,000. Contact us for more information.
