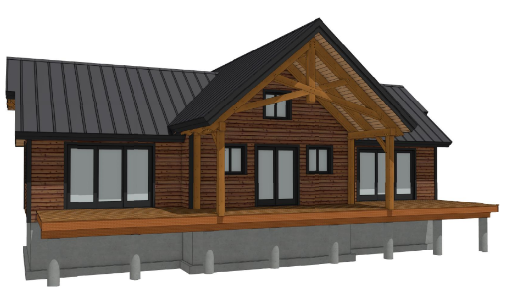

Our 20' x 24' River Bend Cabin III is the classic cabin that can fit in anywhere.  It uses the main frame of the original River Bend Cabin and adds two 16' x 18' Bedroom Wings.  This timber frame plan includes everything to get you started building your dream cabin. We provide all the door and window schedules, sample architectural elevations, sample floor plan, frame elevations, timber/fastener/connector list, all wall layouts, beam layouts, rafter layout, fastening details, and all single beam drawings. It uses 8x8 posts, 8x10 plate beams, 8x8 and 8x10 tie beams, 6x8 joists, 4x6 knee braces, 8x10 ridge plates and a mixture of 6x10 and 8x10 rafters. Let us help you get started today on that dream cabin of yours!


Building Specifications:

  • Size: 20' x 24'w/ (2) 16' x 18' Bedroom Wings
  • Total Square Footage: 1,056


Frame Specifications:

*Timbers are 1/2" Under Full Dimension*

  • Joinery: Mortise and Tenon
  • Posts: 8x8
  • Plate Beam: 8x10
  • Tie Beams: 8x8 and 8x10
  • Joists: 6x8
  • Ridge Plates: 8x10
  • Rafters: 6x10 and 8x10
  • Knee Braces: 4x6
  • Roof:  10 Pitch
  • Wall Height: 1st Floor: 9'


This Plan Includes the Following:


Architectural Items:

*All Architectural Item Pages to be Printed on 24" x 36" Paper Size*

  • Sample Architectural Elevations
  • Door and Window Schedules
  • Sample Floor Plan
  • Cross Section Details
  • Timber Frame Overview


Timber Frame Items:

*All Timber Frame Item Pages to be Printed on 11" x 17" Paper Size*

  • Frame Elevations
  • Material List
  • Wall/Post Layout
  • Wall Layouts
  • Joist Layout
  • Rafter/Plate Layout
  • Fastening Details
  • Single Beam Drawings


20' x 24' River Bend Cabin III

SKU: MT10G2024-RBC111
  • The CNC Pre-Cut Frame for this Cabin starts at $40,495.  Contact us for more information.
