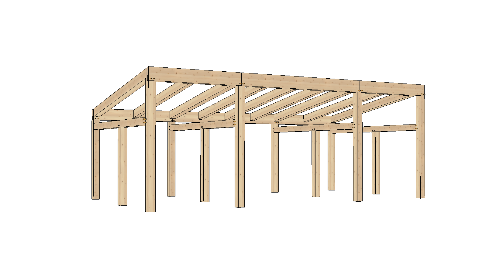

Our 16' x 30' Mini Lake Cabin is the classic cabin that can fit in anywhere.   This timber frame plan includes everything to get you started building your dream cabin. We provide all the door and window schedules, sample architectural elevations, sample floor plan, frame elevations, timber/fastener/connector list, all wall layouts, beam layouts, rafter layout, fastening details, and all single beam drawings. It uses 8x8 posts, 8x14 plate beams, 8x8 tie beams, and a mixture of 6x10 and 8x10 rafters. Let us help you get started today on that dream cabin of yours!



Building Specifications:

  • Size: 16' x 30'
  • Total Square Footage: 480



Frame Specifications:

*Timbers are 1/2" Under Full Dimension*

  • Joinery: Mortise and Tenon
  • Posts: 8x8
  • Plate Beam: 8x14
  • Tie Beams: 8x8
  • Rafters: 6x10 and 8x10
  • Knee Braces: 4x6
  • Roof:  2 Pitch
  • Wall Height: Front: 11'-8”; Back: 9'



Architectural Items:

*All Architectural Item Pages to be Printed on 24" x 36" Paper Size*

  • Sample Architectural Elevations
  • Door and Window Schedules
  • Sample Floor Plan
  • Timber Frame Overview



Timber Frame Items:

*All Timber Frame Item Pages to be Printed on 11" x 17" Paper Size*

  • Frame Elevations
  • Material List
  • Wall/Post Layout
  • Wall Layouts
  • Rafter/Plate Layout
  • Fastening Details
  • Single Beam Drawings



16' x 30' Mini Lake Cabin

SKU: MT2S1630-MLC
$250.00 Regular Price
$175.00Sale Price
  • The buyer agrees that when purchasing a plan, they may only build one structure or building per plan bought.  They cannot reproduce the plan or any part of it without written consent of Team Timber.
