This 16' x 20' Pavilion uses traditional mortise and tenon joinery with a 10-pitch truss style roof.  It is made up with 10x8 corner posts, 8x8 truss posts, 8x14 bottom plates, 8x10 top and bottom chords, 6x8 truss webs, 4x8 braces, and an 8x10 ridge beam.  The plan is 29 pages consisting of a 3D rendering, frame elevations, timber and fastener list, post layout, wall layouts, truss layout, rafter layout, fastening details, and all single beam drawings.  It is a great size and design for enjoying the outdoors while also being under cover.  Let us help you get started today!



Frame Specifications:



  • Size: 16' x 20'
  • Joinery: Mortise and Tenon
  • Posts: 10x8
  • Truss Posts: 8x8
  • Plate Beams: 8x14
  • Rafters: 4x10
  • Ridge Beam: 8x10
  • Bottom Chord: 8x10
  • Top Chord: 8x10
  • Truss Web: 6x8
  • Knee Braces: 4x8
  • Angle Braces: 6x6
  • Roof: 10 Pitch
  • Wall Height:  9'
  • Rafter Overhang:  2'



Plan Specifications:

  • Rendering

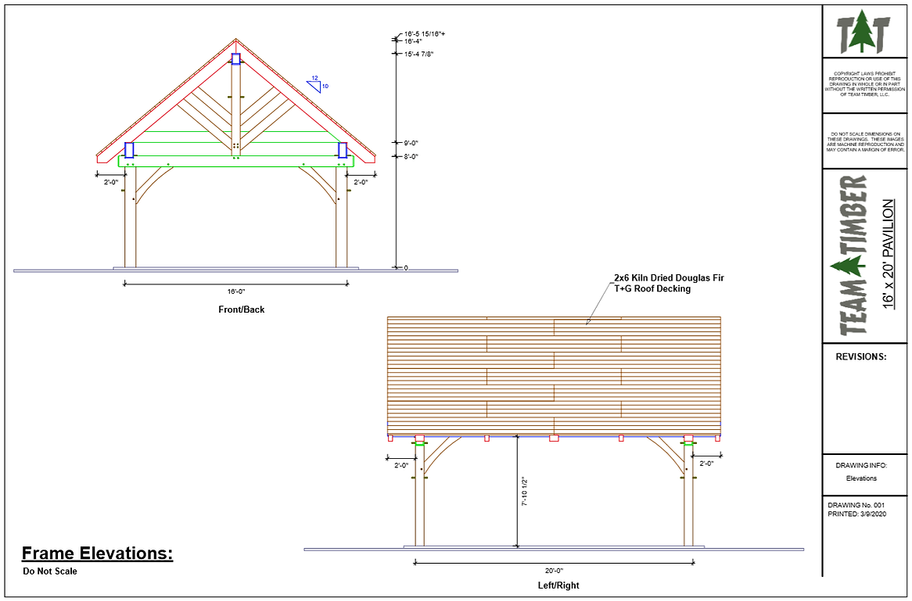

  • Frame Elevations
  • Material List
  • Post Layout
  • All Wall Layouts
  • Truss Layout
  • Rafter Layout
  • Single Beam Drawings
  • Fastening Details

16' x 20' Mortise and Tenon Pavilion

SKU: MT10G1620-P
$50.00Price
  • Upon check out you will receive a download link immediately that will last for 30 days.  Please save your file and remember to print your new plan on 11x17 sheet size.
