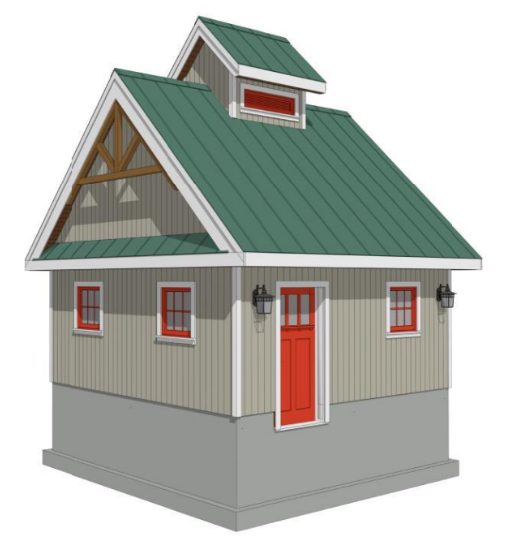

This 16' x 16" Maple Sugar Shack uses a simple type of mortise and tenon joinery. Its Sugar House based design features an attractive and functional cupola allowing it to be used as its name suggest. Of course, that is not the only use for this beautiful building, it would be a great workshop, hobby area or even a cozy cabin! The 46-page full plan gives you everything you will need including, foundation plan, first floor plan with window and door schedules, renderings, elevations, cross section details, wall/post layout, wall layouts, rafter/plate layout, cupola layout, timber, and fastener list, fastening details, and single beam drawings. The frame is made up of 8x8 posts, 8x12 plate beams, 8x8 tie beams, 4x8 and 4x6 rafters, 3x8 sill plate covers, 4x4 wall beams, and 4x6 knee braces. Get started today with these plans!



Building Specifications:

  • Size: 16' x 16'
  • Square Footage: 256



Frame Specifications:

  • Joinery: Mortise and Tenon
  • Posts: 8x8
  • Plate Beams: 8x12
  • Tie Beams: 8x8
  • Rafters: 4x8 and 4x6
  • Wall Beams: 4x4
  • Sill Plate Covers: 3x8
  • Knee Braces: 4x6
  • Roof: 12 Pitch
  • Wall Height:  8'-1"
  • Rafter Overhang:  1'



Plan Specifications:

  • Rendering
  • Elevations
  • Material List
  • Foundation Layout
  • Floor Plan w/ Door & Window Schedules
  • Cross Section Details
  • Wall/Post Layout
  • Wall Layouts
  • Rafter/Plate Layout
  • Fastening Details
  • Single Beam Drawings

16' x 16' Sugar House

SKU: MT12G1616-SH
$500.00 Regular Price
$300.00Sale Price
  • Upon check out you will receive a download link immediately that will last for 30 days.  Please save your file and remember to print your new plan on 11x17 sheet size.
