This 14' x 16" Maple Sugar Shack is a full mortise and tenon frame. It has an 8' x 10' lean to along with a cupola. The 48-page full plan gives you everything you will need including, foundation plan, renderings, elevations, wall layouts, beam layout, rafter layout, timber and fastener list, fastening details, and single beam drawings. The frame is made up of 6x6 posts, 6x8 plate and tie beams, 4x8 and 6x8 rafters, and 4x6 knee braces. It was designed to be a sugar shack but would make a great little workshop or shed as well.
Frame Specifications:
- Size: 14' x 16' with 8' x 10' Lean-To
- Joinery: Mortise and Tenon
- Posts: 6x6
- Plate Beams: 6x8
- Tie Beams: 6x8
- Rafters: 4x8 and 6x8
- Door Bucks/Headers: 4x6
- Siding Nailers: 4x4
- Knee Braces: 4x6
- Roof: 10 Pitch, Lean-To: 4 Pitch
- Wall Height: 7'10"
- Rafter Overhang: 8"
Plan Specifications:
- Frame Elevations
- Material List
- Foundation Plan
- Post Layout
- Beam Layout
- All Wall Layouts
- Rafter Layout
- Cupola Drawing

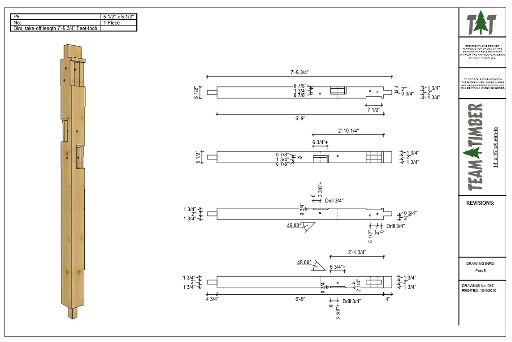

- Single Beam Drawings
- Fastening Details
14'x16' Maple Sugar House w/ 8'x10' Lean-To
SKU: MT10G1416-SS
$225.00Price
The CNC Pre-Cut Frame for this Sugar House starts at $10,495. Contact us for more information.
